SKU: | RENATA-HU2450N-LF |
---|---|
MPN: | HU2450N-LF |
Manufacturer: | Renata |
Battery Size: |

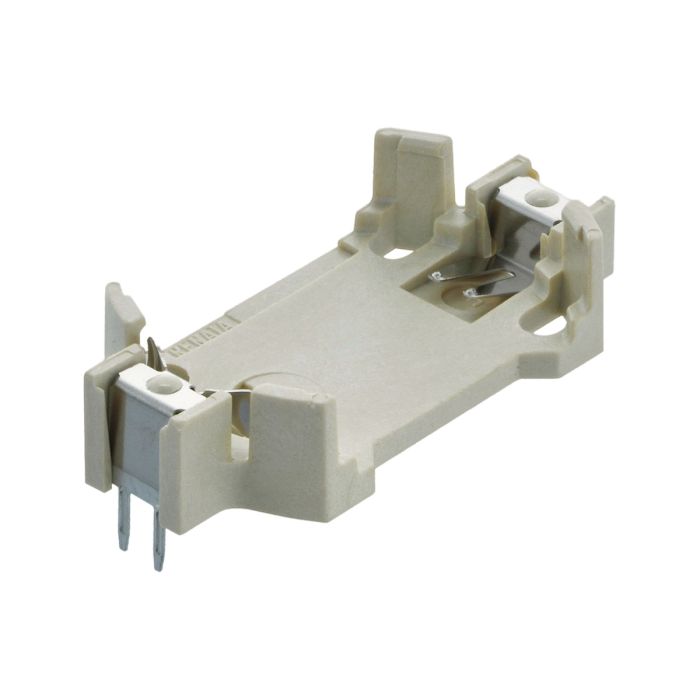

Our battery holders are intended for a simple and fast change of the battery, with a secure hold and reliable connection of the coin cells.
Most variants have outstanding suitability for reflow soldering and automatic pick-and-place assembly. The numerous, different designs will allow both a vertical and horizontal alignment of the batteries in an SMT or pin-in-hole assembly. All battery holders in our extensive assortment meet the highest quality requirements and provide a state of the art, low transition resistance and good solderability.
Brand | Renata |
---|---|
MPN | HU2450N-LF |
Color | Beige |
Battery Size | CR2450N |
Material | |
Holder | |
Liquid Crystal Polymer, Glass-fiber Reinforced | |
Battery Contacts | |
Stainless Steel, Nickel-plated | |
Soldering Contacts | |
Stainless Steel, Tin-plated |
Length | 1.3" / 33 ±0.2mm |
---|---|
Width | 0.63" / 16.1mm +0.1/−0.2 |
Height | 0.56" / 14.3mm |
Weight | 0.05oz / 1.45g |
Compatible Battery Diameter | 0.96" / 24.5mm −0.3 |
Country of Origin | China |
---|---|
