SKU: | RENATA-SMTU1225-LF |
---|---|
MPN: | SMTU1225-LF |
UPC/EAN: | 785618071429 |
Manufacturer: | Renata |
Battery Size: |

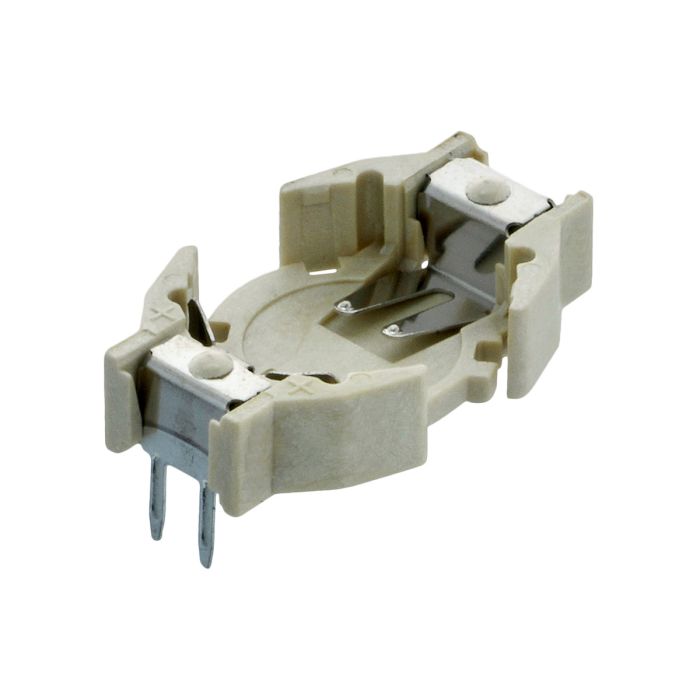

Our battery holders are intended for a simple and fast change of the battery, with a secure hold and reliable connection of the coin cells.
Most variants have outstanding suitability for reflow soldering and automatic pick-and-place assembly. The numerous, different designs will allow both a vertical and horizontal alignment of the batteries in an SMT or pin-in-hole assembly. All battery holders in our extensive assortment meet the highest quality requirements and provide a state of the art, low transition resistance and good solderability.
Brand | Renata |
---|---|
MPN | SMTU1225-LF |
Color | Beige |
Battery Size | CR1225 |
Material | |
Holder | |
Liquid Crystal Polymer, Glass-fiber Reinforced | |
Battery Contacts | |
Stainless Steel, Nickel-plated | |
Soldering Contacts | |
Stainless Steel, Tin-plated |
Length | 0.93" / 23.7mm ±0.3 |
---|---|
Width | 0.5" / 12.7mm ±0.2 |
Height | 0.19" / 4.8mm ±0.2 |
Weight | 0.02oz / 0.7g |
Country of Origin | China |
---|---|
