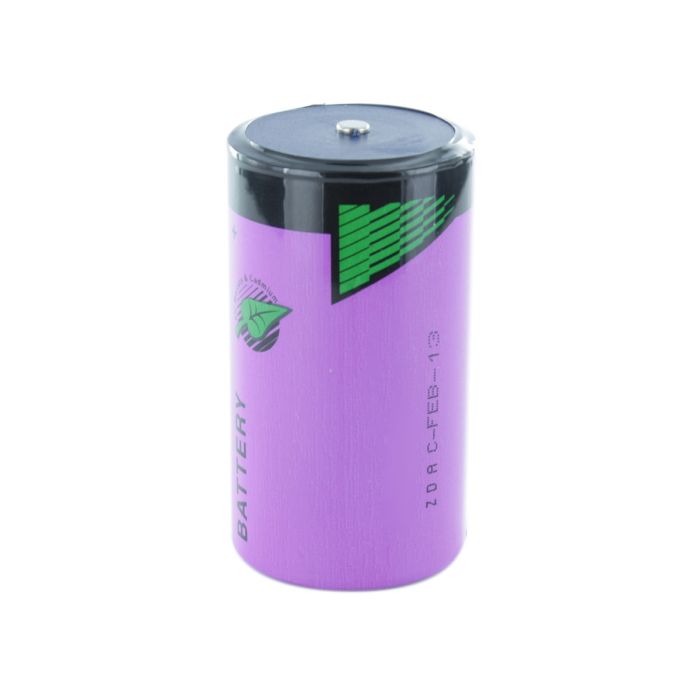

Tadiran TLH5930 D cell

SKU: TADIRAN-TLH-5930
UPC/EAN: 0736952859778
Manufacturer: Tadiran
Chemistry: Lithium Thionyl Chloride
Battery Size: D
Shelf Life: 10 Years
Typical Capacity (mAh): 17000.0
Specifications
Product Category:
Terminal Type:
Button Top
Primary/Rechargeable:
No
Country of Manufacture:
Primary Color:
Purple
Nominal Voltage:
3.6
Typical Capacity (mAh):
17000.0
Shipping Info
Shipping Restrictions:
Lithium: Ground Shipping Only.
Packaging:
Boxed
Qty. Per Package:
1
Shipping Weight (Pounds):
0.1
Documents and Media
Files:
Description
Available in standard cell sizes 1/2AA, 2/3AA, AA, C, D and DD cylindrical cells as well as wafer cells, TLH Series cells are ideal for many extended temperature applications, including automotive (tire pressure monitoring, engine sensors, windshield-mounted devices), medical (autoclave and sterilization), industrial (machinery-mounted sensors, utility metering, remote sensors), as well as military and aerospace applications. Product features include: Higher voltage (3.6V) 2X the energy density of other leading chemistries The widest operation temperature (-55°C to +125°C) Maximum service life of 20+ years Small form factor Glass-to-metal hermetical seal (not crimped elastomer gasket)
